Purge Meter - KPM
Purge meter model KPM is designed for industrial water purging applications and to withstand contaminated water. The KPM comes with a built-in flow tube cleaner and the strong and compact design ensures maximum resistance to external impact. Reliable flow measurement is based on a variable area metering principle using a free-floating float.
- Solid construction
- Clog resistant flow control valve
- Built-in tube cleaner
- Mounting bracket
- Water purging
- Min 0.25 – 6.0 USGPH
- Max 2 – 50 USGPH
Liquid and Gas - VLFH
Variable area flow meter Model VLFH is a sturdy industrial flow meter with DN or ANSI flange connections. It is a reliable instrument for measuring and monitoring liquid and gas flows.
- Sealing and cooling water
- Lubrication oil
- Flush water measurements.
- Min 0.1 – 0.55 USGPM
- Max 1 – 8.0 USGPM
- Scales for alternative liquids (option)
- Min 0.5 – 3 SCFM
- Max 5 – 35 SCFM
- Scales for alternative gases (option)
Liquid and Gas - VL
Variable area flow meter Model VL is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows.
- Large selection of materials
- Built-in flow adjustment valve and quick-change flow tube
- CRN approved select models
- Lubrication oil measurement
sealing - Cooling water measurement
- Flush water applications
- Gas flow measurements
- Min 0.1 – 0.55 USGPM
- Max 1 – 8.0 USGPM
- Min 0.5 – 3 SCFM
- Max 5 – 35 SCFM
Liquid and Gas - EA
Variable area flow meter Model EA with adjustable flow alarm is designed for applications where continuous flow control is essential. The adjustable flow alarm and clear scale guarantees easy and reliable flow monitoring. Typical applications are heat treatment ovens and automatic welding lines.
- Max. flow 2.5 L/min H₂O
- Max. flow 90 NL/min air at 1.013 bar (abs)
- Max. pressure 10 bar
- Max. temperature +75°C
- Clear, easy-to-read scale
- Reliable operation Acrylic (PMMA) body
- Heat treatment ovens
- Automatic welding lines
Liquid and Gas - VL
Model KLFH is a sturdy industrial variable area flow meter with DN or ANSI flange connections. It is a reliable instrument for measuring and monitoring liquid and gas flows.
- Sturdy construction with protected flow tube
- Stainless steel body and side plates
- Sealing water measurements for vacuum pumps
- Lubrication oil measurements
- Liquid and gas flow measurements
- Flush water applications
- Min 2 – 11 USGPM
- Max 2.5 – 27.5 USGPM
- Min 7.5 – 45 SCFM
- Max 20 – 120 SCFM
Liquid and Gas - E
Variable area flow meter Model E is a high-quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows. It is available in single tube and multi-tube versions with many options. Model E is equipped with a flow adjustment valve and is also available in customized designs.
- Acrylic body
- Flow adjustment valvе
- Water and air purging
- Gas and liquid measurements
- CO₂ control in greenhouses
Min 0.02 – 0.26 USGPH
Max 5 – 40 USGPH
- Min 0.2 – 2.0 SCFH
- Max 40 – 200 SCFH
Liquid and Gas - VE
Variable area flow meter Model VE is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the outlet. It comes in a range of different options and offers a choice of end blocks: aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows.
- Models VD and VE with built-in flow adjustment valve and quick-change flow tube
- Alarm-ready
- Lubrication oil measurement
- Sealing and cooling water measurement
- Flush water applications
- Gas flow measurements
- Min 0.4 – 2 L/min
- Max 5 – 30 L/min
- Min 15 – 70 NL/min
- Max 150 – 700 NL/min
Liquid and Gas - KL
Variable area flow meter Model KL is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It comes in a range of different options and offers a choice of end blocks – aluminium, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows.
- Sturdy construction with protected flow tube
- Models K and KD with built-in flow adjustment valve
- Stainless steel side plates
- Sealing water measurements for vacuum pumps
- Lubrication oil measurements
- Gas flow measurements
- Flush water applications
- Min 7.5 – 40 L/min
- Max 10 – 120 L/min
- Min 200 – 1200 NL/min
- Max 400 – 3000 NL/min

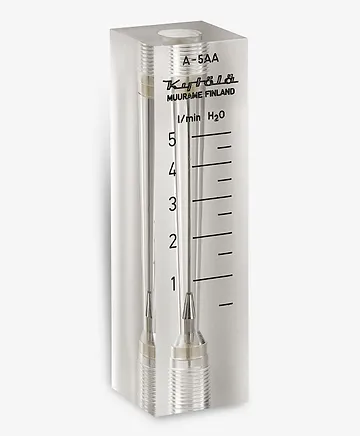

Variable area flow meter Model A is a high-quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows.
Features:
- Machined acrylic body Clear
- Easy to read scales
Typical applications are:
- Water treatment
- Sealing water measurements
- Gas flow measurements.
Flow range H2O, 20°C:
- Min 2 – 20 mL/min
- Max 0.5 – 6.5 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 0.1 – 0.9 NL/min
- Max 20 – 220 NL/min

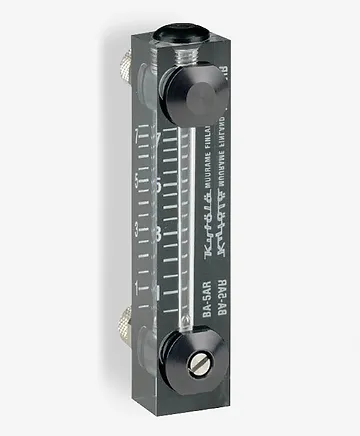

Variable area flow meter Model BA is a high-quality acrylic flow meter. It is designed for monitoring of low air flow rates. It has a flow adjustment valve and rapid fittings for plastic hose.
Features:
- Acrylic body
- Connections for plastic hose
- Needle valve
Typical applications are:
- Measuring gas flows for analyzers
- Air purging for enclosures
- Differential pressure measurements.
Flow range air, 1.013 bar(a), 20°C:
- Min 0.2 – 1.4 NL/min
- Max 0.5 – 7.5 NL/min

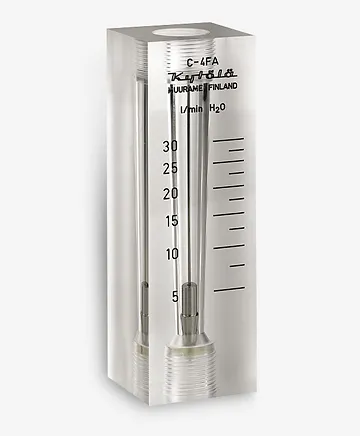

Variable area flow meter Model C is a high-quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows.
Features:
- Machined acrylic body Clear
- Easy to read scales
Typical applications are:
- Water treatment
- Sealing water measurements
- Gas flow measurements
Flow range H2O, 20°C:
- Min 0.5 – 5 L/min
- Max 5 – 30 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 20 – 200 NL/min
- Max 100 – 1000 NL/min

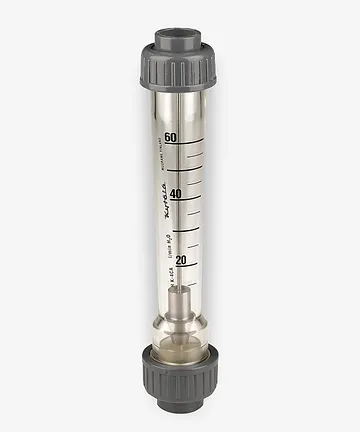

Variable area flow meter Model HK is an industrial flow meter. It has an injection molded impact resistant flow tube with threaded or socket type connections. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Low cost
- Large variety of flow ranges
Typical applications are:
- Reverse osmosis
- Water treatment plants
- Chemical and process industries
- Agricultural applications
- Flow measurement in PVC piping.
Flow range H2O, 20°C:
- Min 0.3 – 1.2 m³/h
- Max 1 – 4.75 m³/h
Flow range air, 1.013 bar(a), 20°C:
- Min 0.14 – 0.6 Nm³/min
- Max 0.3 – 2.5 Nm³/min

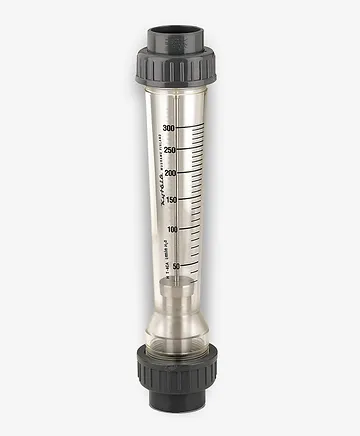

Variable area flow meter Model HT is an industrial flow meter. It has an injection molded impact resistant flow tube with threaded or socket type connections. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Low cost
- Large variety of flow ranges
Typical applications are:
- Process industry
- Chemical industry
- Water treatment plants
- Flow measurement in PVC piping
- General water and air measurement
Flow range H2O, 20°C:
- Min 0.5 – 3 m³/h\
- Max 4 – 22 m³/h
Flow range air, 1.013 bar(a), 20°C:
- Min 0.35 – 2 Nm³/min
- Max 2 – 14 Nm³/min

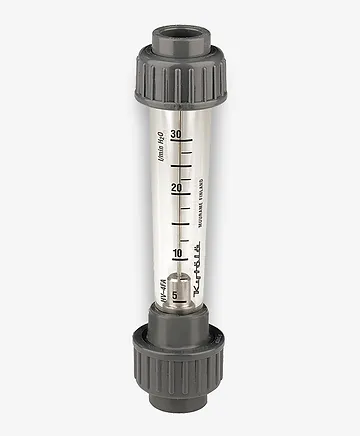

Variable area flow meter Model HV is an industrial flow meter. It has an injection molded impact resistant flow tube with threaded or socket type connections. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Low cost
- Large variety of flow ranges
Typical applications are:
- Reverse osmosis
- Water treatment plants
- Chemical and process industries
- Agricultural applications
- Flow measurement in PVC piping.
Flow range H2O, 20°C:
- Min 0.02 – 0.11 m³/h
- Max 0.3 – 1.8 m³/h
Flow range air, 1.013 bar(a), 20°C:
- Min 0.015 – 0.07 Nm³/min
- Max 0.2 – 0.9 Nm³/min
Variable area flow meter Model KD is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the inlet. It comes in a range of different options and offers a choice of end blocks – aluminum, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring gas flows.
Features:
- Sturdy construction with protected flow tube
- Models K and KD with built-in flow adjustment valve
- Stainless steel side plates
Typical applications are:
- Sealing water measurements for vacuum pumps
- Lubrication oil measurements
- Gas flow measurements
- Flush water applications
Flow range air, 1.013 bar(a), 20°C:
- Min 200 – 1200 NL/min
- Max 400 – 3000 NL/min

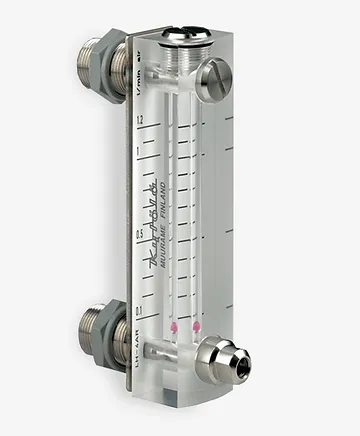

Variable area flow meter Model L is a sturdy industrial acrylic flow meter. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Plastic flow tube with stainless steel connections
- Flow adjustment valvе
Typical applications are:
- Water and air purging
- Seal liquid monitoring
Flow range H2O, 20°C:
- Min 2 – 18 mL/min
- Max 0.5 – 3.5 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 0.1 – 0.9 NL/min
- Max 15 – 110 NL/min

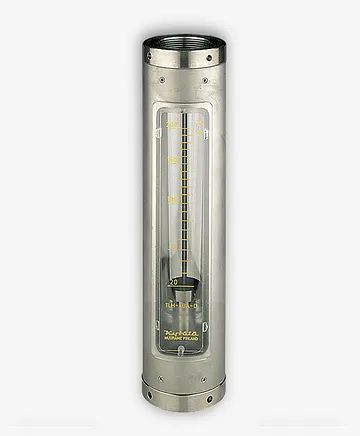

Variable area flow meter Model TL is a sturdy industrial flow meter. It has a stainless steel AISI 316 or aluminium body with a heavy-duty impact resistant polymer flow tube. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Sturdy construction
- Protected flow tube
Typical applications are:
- Sealing water measurement for vacuum pumps
- Lubrication oil measurement for gear boxes
- Flush water applications
- Gas flow measurements
Flow range H2O, 20°C:
- Min 7.5 – 55 L/min
- Max 50 -400 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 0.3 – 1.9 Nm3/min
- Max 1 – 12 Nm3/min

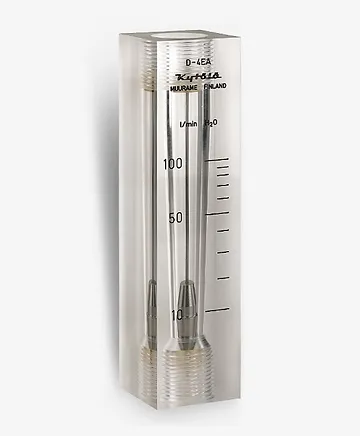

Variable area flow meter Model D is a high-quality acrylic flow meter. It is a reliable and easy to read instrument for measuring and monitoring liquid and gas flows.
Features:
- Machined acrylic body Clear
- Easy to read scales
Typical applications are:
- Water treatment
- Sealing water measurements
- Gas flow measurements
Flow range H2O, 20°C:
- Min 7.5 – 40 L/min
- Max 10 – 100 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 200 – 1100 NL/min
- Max 500 – 2500 NL/min

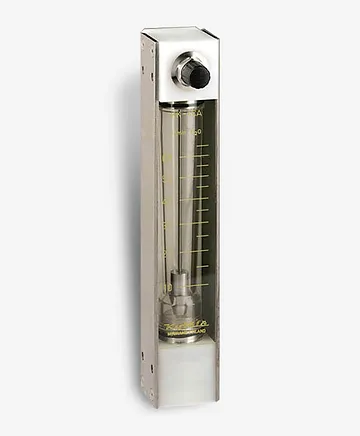

Variable area flow meter Model K is a sturdy industrial flow meter with a heavy-duty impact resistant polymer flow tube. It has a flow adjustment valve on the outlet and an optional quick-change tube feature. It comes in a range of different options and offers a choice of end blocks – aluminum, stainless steel AISI 316 or polyamide. It is a reliable instrument for measuring and monitoring liquid and gas flows.
Features:
- Sturdy construction with protected flow tube
- Models K and KD with built-in flow adjustment valve
- Stainless steel side plates
Typical applications are:
- Water treatment
- Oil measurements
- Sealing water measurements of vacuum pumps.
Flow range H2O, 20°C:
- Min 7.5 – 40 L/min
- Max 10 – 120 L/min
Flow range air, 1.013 bar(a), 20°C:
- Min 200 – 1200 NL/min
- Max 400 – 2800 NL/min
