What kind of level indicator do you require and when should you use different kinds of technologies to solve a level measurement solution.

HAWK develops and manufactures level measurement equipment based on different technologies such as, Acoustic Wave, Ultrasonic, Microwave and Radar.  We can supply level indicators and transmitters. Whatever you need in level instruments, probably Hawk has the answer.

Level Measurement Switch

Blocked Chute Protection Switch

HAWK’s Blocked Chute Switches provide point-level switching for the presence or absence of most solid and liquid materials. HAWK’s blocked conveyor transfer chute switch is 50 times more sensitive than the competition, allowing it to predict blockage and build-up before it occurs. Eliminate downtime and increase productivity and profitability with HAWK’s durable line of blocked chute switches.

The Gladiator Gen 3 Microwave Switch can be used for blockage detection, barrier detection, machine detection, collision detection for protection, point level measurement, and detection of objects or material between two points.

A beam of microwave energy passes from a sender until to a separate receiver in bursts approximately 200 times per second. The presence or absence of the signal at the receiver is used to switch a relay for indication or control purposes.

  • State of the art Circular transmission
  • Backwards compatible with all Gladiator Microwave generations
  • LCD push button setup / diagnostics on remote amplifier
  • Simple sensitivity adjustment and calibration on Integral system
  • Ranges up to 1200 meters (3937 ft)
  • Measuring Range: 10cm (4in) – 1200m (3937ft)
  • Communications: GosHawk, Modbus, Modbus over Ethernet TCP/IP, 4-20mA
  • Maximum Operating Pressure: 6 Bar
  • Mounting: 3.5″ male NPT thread or four 10mm (0.4″) holes in flange, MA12 / MA13 adjustable mounting bracket

The Gladiator Gen 1 Microwave Switch can be used for blockage detection, barrier detection, machine detection and point level measurement, and detection of objects or material between two points.

A high power circular polarized Microwave pulse is emitted from the Sending unit to the Receiving unit in a transmission chain of approximately 100 pulses per second.

  • State of the art circular polarization
  • Simple sensitivity adjustment and calibration
  • IECEx ta tb IIIC T* Da Db
  • Theoretical range up to 300m (984ft)
  • Simple
  • 1-minuteÍ setup application presets
  • Multiple Output & Communications Options
  • Measuring Range: 10cm (4in) – 300m (984ft)
  • Communications: GosHawk, Modbus, Modbus over Ethernet TCP/IP, 4-20mA
  • Maximum Operating Pressure: 10 Bar (145psig)
  • Mounting: 1″ BSP, 1″ NTP

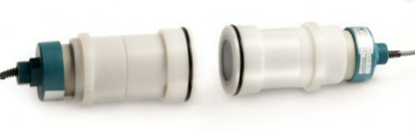

The Gladiator Acoustic Switch can be used for blockage detection, barrier detection, machine detection / protection and point level measurement, and detection of objects or material between two points.

The Gladiator Acoustic Switch uses Acoustic Wave technology in a new Sender / Receiver form for blocked chute detection and anti-collision for heavy machinery. The Gladiator Amplifier powers two AW Transducers which use special HAWK developed software where both units pulse and receive each other’s Acoustic echoes. The Transducers work both together and independently to detect pulse interference giving twice the application security. The Acoustic Switch is designed for continuous operation in dusty, wet environments where other technologies fail.

  • No contact with the product required.
  • Self-cleaning transducers
  • Heavy duty titanium version available
  • Designed for dusty, wet environments.
  • LCD setup / diagnostics on remote amplifier
  • Simple
  • s1-minuteÍ setup
  • Measuring Range: 10cm (4in) – 300m (984ft)
  • Communications: GosHawk, Modbus, Modbus over Ethernet TCP/IP, 4-20mA
  • Maximum Operating Pressure: 10 Bar (145psig)
  • Mounting: 1″ BSP, 1″ NTP
Vibrating Level Sensor

HAWK’s Vibrating Level Switches can detect liquid level within millimeter precision, regardless of the installation position. Featuring interface measurement of liquids and solids, these rugged switches are even available for use in potentially explosive atmospheres. Precision monitoring for liquid applications from filling systems to bulk holding tanks.

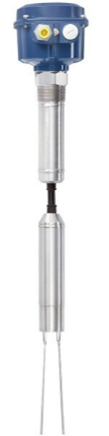

Is a third generation, state of the art level probe, designed to operate in tough industrial environments. A stainless-steel tuning fork is driven by piezo ceramic elements, causing it to vibrate at its resonant frequency. When the material to be detected covers the fork, vibrations are damped. The changed vibration is sensed electronically, and the processed signal is used to switch a relay for indication or control purposes.

  • In Liquid Tank
  • High and Low liquid level switch in tanks
  • Plastic pellet silo
  • High and low-level switch in hopper
  • Suitable for a wide range of solids and liquids
  • Heavy-duty construction
  • Simple
  • 1-minute setup
  • Remote sensor or Integral
  • All in one type
  • Relay outputs: Integral probe (1) Remote (2)
  • Remote test function
  • Measuring Capability: All liquids, solids, powder
  • Vibration Frequency: Liquids 425Hz, Solids 80Hz
  • Maximum Operating Pressure: 10 bar / 145psig
  • Mounting:
  • 1″ NPT or BSP Thread – Liquid type only
  • 5″ NPT or BSP Thread – Solid/Powder type only
  • 50mm (2″) Flange (ANSI, DIN or JIS patterns available)

The Vibranivo Vibrating Level Switch Series is used for level monitoring in all types of containers and silos. It can be used with all powdery and granulated bulk materials that do not show a strong tendency to form crusts or deposits. Detection of solids in water is also possible. The units can be delivered with a wide range of Ex-approvals for use in Gas and Dust Hazardous Areas.

Vibranivo probes can be used as full, demand or empty detectors in bulk good silos. They are especially suited for use in all fine grain and powdered solids, including very light materials with a density below 5g/l.


Vibranivo vibration forks are available with international certificates for applications in Hazardous Locations (gas and dust).

  • Vertical, horizontal, and oblique installation
  • Full, Demand, Empty Detector
  • Easy access for wiring via larger electronics housing
  • Suitable for liquids and solids applications
  • Sensitivity: adjustable in 2 levels (A/B)
  • Safety Operation (FSL, FSH): Switchable for minimum or maximum safety.
  • Protection class: I, II, III, IIII
  • Relatively Humidity: 0-100%, suitable use.
Admittance Level Switch

HAWK’s Admittance Level Switch is an all-around point level switch for detecting the liquid, slurry, or powder level in a tank or vessel. The admittance level measurement unit measures the admittance between a probe and the wall of the container. These switches are rugged and operate in tough industrial environments. They have an excellent immunity to product build-up and are ideal for a wide variety of applications from paper mills to power generation.

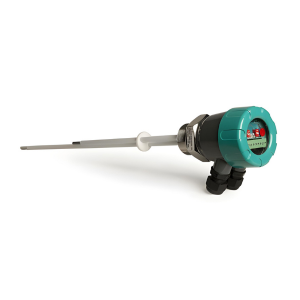

The Gladiator Admittance Smart Switch is a point level switch for liquids, solids and powders. The unit is suitable for a broad range of products and dielectric constants up to high temperature of 450°C (842°F).

  • Asphalt, Brewing, Mining & Metals
  • Cement, Semiconductor, Chemical
  • Sugar, Dairy, Textile
  • Edible oil, Paint, Fertilizer
  • Paper, Food & Beverage
  • Water and Wastewater
  • Power Generation. Etc.
  • Excellent immunity to product build-up
  • Excellent temperature stability – no false trips
  • Non-contact switching possible with many products.
  • Remote test function
  • Adjustable ON and OFF delays (0-20 sec)
  • Modbus over Ethernet TCP/IP option
  • Remote amplifier to probe separation up to 500 meters (1640ft)
  • Measurement Range: 0.2pF – 100nF
  • Maximum Operating Pressure: 1-60 Bar (14.5-870 Psi) see Probe Configurations
  • Stability: 0.01% / °C
  • Display (Remote Version Only): 2-line x 12-character alphanumeric LCD.
Sonar Interface Level System

HAWK’s Sonar Interface Level System can measure up to two density interfaces simultaneously. This system is easy to use, and the innovative design provides critical plant control to optimize performance. Ideal for applications from mining and metals to water and wastewater.

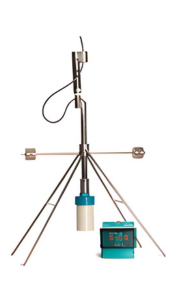

The ORCA Sonar Bed Level System will measure up to two density interfaces simultaneously. Typically, these are bed levels / RAS blanket and floc / fluff layers. The sonar produces a high-power concentrated beam and provides critical plant control to optimize performance.

The ORCA Sonar Bed Level transducer emits a high-powered acoustic pulse, which is reflected from the interface density selected. The reflected signal is processed using specially developed software algorithms, that eliminate lighter floating densities and stratified layers, allowing measurement of RAS or BED levels. It can be calibrated to measure lighter densities like FLOC or one of the outputs could be used for a CLARITY output, similar to a basic turbidity transmitter measuring solids in suspension. By choosing the correct sonar transducer frequency, the ORCA sonar guarantees the optimized performance when measuring both light and heavy-density interfaces.

  • Sewage Plant
  • Tank or Vessel
  • Mining
  • Water and Wastewater
  • Dual independent analogue outputs to track two different interfaces, or clarity simultaneously, with the one sonar sensor.
  • Easy calibration to track specific density interfaces, e.g.: floc / fluff layer – 1g/l, Bed 10g/l+
  • Industrial scum cleaning mechanisms, that do not require maintenance.
  • No wiper blade assemblies
  • Accuracy: +/- 0.25%
  • Maximum Range: 24m (82ft)
  • Remote Electronics: -40°C to 70°C (-40¼F to 158¼F)
  • Sonar Transducer FRP Fibreglass: -40°C to 80°C. (-40¼F to 176¼F)
  • Electronic Actuator: 0°C to 80°C (0¼F to 176¼F) (recommend cover / heating for subzero environments)
  • Operating Temp: -40°C to 70°C (-40°F to 158°F)

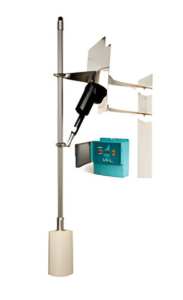

The HAWK Sultan Sonar uses Advanced Sonar Technology to measure and control Wastewater Clarifiers and Thickeners. The system is easy to use, and the innovative design provides critical plant control to optimize performance. In the water, wastewater industry process conditions will vary greatly between a primary sedimentation tank, secondary/final clarifier, and a gravity thickener. Thickener bed levels, secondary RAS blanket, flocculent blanket, etc, all have different densities and the water above these interface levels are subject to different process conditions that change.

Principle of Operation

To optimize performance in each interface application under all process environments HAWK has developed a powerful low frequency transducer that penetrates through the suspended solids. It is capable of measuring the sludge bed level at the bottom of a clarifier or the lightest flocculent layer. Optimize performance under all process environments in each interface application. HAWK uses one transducer with a frequency and power level that is applicable to the density of the interface and process conditions expected in the tank. HAWK can guarantee performance for controlling pumps etc, rather than for monitoring purposes only.

  • Sewage Plant
  • Channel or Flume
  • Improved efficiency and control of the treatment process
  • Fully automated plant systems with reliable sludge blanket level monitoring
  • Advanced warning of biological upset or hydraulic imbalance
  • Reduced maintenance with 5 year cleaning mechanism warranty (no blades to replace)
  • Reduced site operational costs significantly with improved process control for downstream operations
  • Improved health and safety on site with compliance to OSHA regulations (no manual dips required).
  • Accuracy: +/- 0.25%
  • Maximum Range: 15m (50ft)
  • Operating Temp: Remote Electronics -40°C (-40°F) to 80°C (176°F)
  • Sonar Transducer: -40°C (-40°F) to 50°C (122°F)
  • Communications: GosHawk, Modbus, HART, Profibus DP, DeviceNet, Foundation Fieldbus, Profibus PA.
Magnetic Level Gauges

HAWK’s Magnetic Level Gauges are based on the principle of magnetic coupling and buoyancy. The magnetic level gauge provides a real-time measurement of level and interface. Ideal for a wide variety of applications from oil and gas to water treatment.

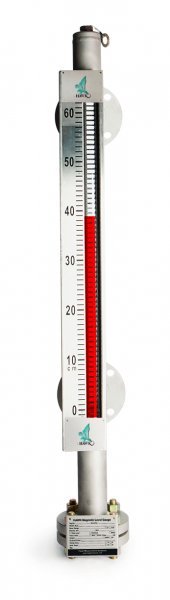

The HAWK Magnetic Level Gauge (MLG) is widely applied in the monitoring and process control of liquid level and interface for many industries, such as petroleum, chemical, power, paper, metallurgy, water treatment etc.

HAWK’s Magnetic Level Gauge (MLG) is connected to a process vessel. Within the chamber is a float containing a 360° magnetic ring. Outside of the chamber is an indicator equipped with a vacuum glass tube, which contains a bicoloured two-face magnetic bargraph. In response to the level movement, the float moves accordingly, forcing the magnetic bargraph to turn and change color. True liquid level is indicated or “read” from the corresponding point on the measuring scale.

  • Simple modular design, composed a main chamber and a float.
  • Immune to oxidation, corrosion and the effects of dust
  • Maximum pressure rating: ANSI 2500LB
  • Single chamber
  • Measuring Accuracy: ±0.1″ or ±2.54 mm
  • Process Connection Type: Flange/Thread/Nipple
  • Pressure Range: 0~6000PSIG (Full Vacuum~42MPa)
  • Protection Grade: IP68
